SAP BTP

Architecture Overview

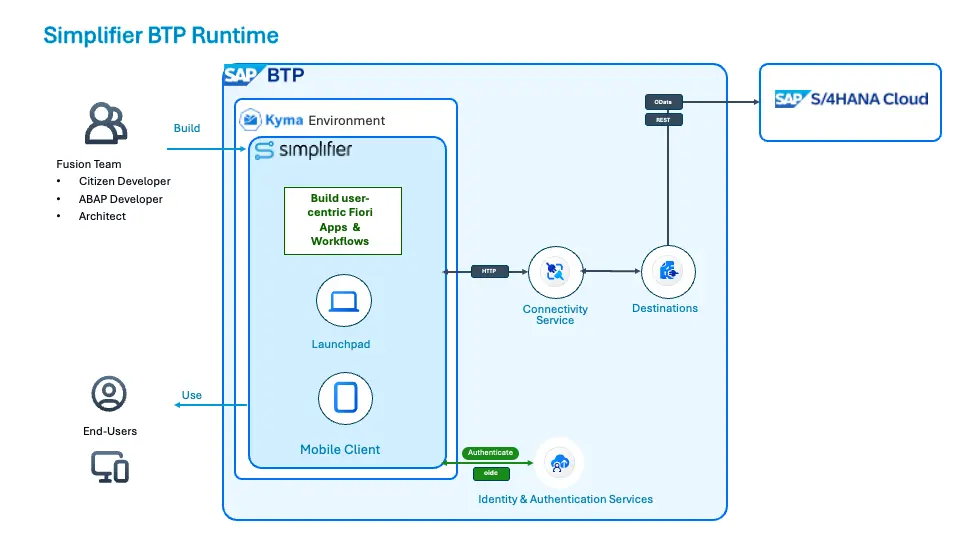

Simplifier is running on SAP BTP within Kyma Services – therefore you need certain prerequisites to install simplifier.

Prerequisites

Active Kyma Environment running on a SAP BTP Account
Installed Git and kubectl on client (Tutorial)

Clone the Simplifier BTP Kubernetes Repository

To download and clone the needed setup files, create a workdirectory and clone the repository into it

git clone --branch release/8.1 https://github.com/simplifier-ag/simplifier-sap-btp-kyma-deployment.git

Connect to Kyma Cluster

Download the Kubeconfig.yaml to your local workspace via the provided URL within SAP BTP Kyma Environment

Set the KUBECONFIG Variable to this Kyma Cluster Configuration

export KUBECONFIG=PATH/TO/kubeconfig.yaml

Test if the configuration is loaded:

kubectl config get-contexts

You should see something like this

Prepare Configuration

The configuration file includes all secrets like passwords for mysql server etc – you can adjust it to your security requirements:

All Secrets / Password has to be configured as base64 encoded String – if you don’t know how to do it, copy the password into a base64 online encoder and paste the result in the config file below.

# base64 encoded
apiVersion: v1
kind: Secret
metadata:
  name: simplifier-secrets
  namespace: simplifier
type: Opaque
data:
  MYSQL_ROOT_PW: <YourSecretPasswordforMySQLRootAccount>
  SIMPLIFIER_PW: <YourSecretPasswordforSimplifierDatabase>
  MYSQL_USER: <NameofSimplifierUserforSimplifierDatabase>
  SIMPLIFIER_DB: <NameofSimplifierDatabase>

After changing the config to your needs, deploy the secrets and namespaces

kubectl apply -f ./config/config.yaml

Deploy MySQL Database Service

Deploy MySQL Database Server

kubectl apply -f ./mysql/mysql-deployment.yaml

Create databases with Job, wait for the finished job

kubectl apply -f ./mysql/mysql-init-deployment.yaml

Check if Database is running

kubectl -n simplifier get pods -l app=mysql

Deploy Simplifier

Deploy Simplifier Application Server

kubectl apply -f ./simplifier/simplifier-deployment.yaml

Deploy Simplifier Launchpad (optional)

kubectl apply -f ./simplifier/simplifier-launchpad.yaml

Deploy Simplifier Workflow Designer (optional)

kubectl apply -f ./simplifier/simplifier-designtime.yaml

Deploy Simplifier Workflow Runtime (optional)

Before you deploy the Workflow Runtime – pls add the provided Kyma Public Access URL into

simplifier/simplifier-runtime.yaml

            - name: SIMPLIFIER_LAUNCHPAD_BASE_URL
              value: "https://mysimplifier.kyma.ondemand.com"

after changing to the correct url , the workflow runtime service can be deployed:

kubectl apply -f ./simplifier/simplifier-runtime.yaml

Setup Ingress Routes using istio

This file configure the routing using the default Kyma Gateway and also set the needed Header to support CORS Policy. (Read more)

Before deployment, the Base Domain Name to Simplifier Kyma URL has to be changed within:

kyma/istio.yaml

# todo url
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: simplifier-svc
  namespace: simplifier
spec:
  hosts:
  - <your-full-qualified-domain-name-here>
  http:

After configuring a valid host, the policies and routes can be deployed

kubectl apply -f ./kyma/istio.yaml

Backup / Restore

Create Backup

kubectl apply -f ./snapshot/create-snapshot.yaml

Notice: the snapshot has no dynamic name and no changes would be recognized and therefore no new snapshot created. Rename the snapshot or delete the old one

After creating the snapshot it takes some time until the snapshot is usable

Check the “READYTOUSE”-flag

kubectl -n simplifier get volumesnapshot

NAME                           READYTOUSE SOURCEPVC
snapshot-mysql                 true       mysql-pvc
snapshot-simplifier            true       simplifier-pvc
snapshot-simplifier-designtime true       simplifier-designtime-pvc
snapshot-simplifier-launchpad  true       simplifier-launchpad-pvc
snapshot-simplifier-runtime    true       simplifier-runtime-pvc

Restore Backup

To restore the backup delete the current deployments

kubectl delete -f ./mysql/mysql-deployment.yaml
kubectl delete -f ./simplifier/simplifier-deployment.yaml
kubectl delete -f ./simplifier/simplifier-launchpad.yaml
kubectl delete -f ./simplifier/simplifier-designtime.yaml
kubectl delete -f ./simplifier/simplifier-runtime.yaml

Then recreate the persistent volume claim from the snapshot

kubectl apply -f ./snapshot/restore-snapshot.yaml

Finally recreate the deployments

kubectl apply -f ./mysql/mysql-deployment.yaml
kubectl apply -f ./simplifier/simplifier-deployment.yaml
kubectl apply -f ./simplifier/simplifier-launchpad.yaml
kubectl apply -f ./simplifier/simplifier-designtime.yaml
kubectl apply -f ./simplifier/simplifier-runtime.yaml

Next Steps

If you installed Simplifier on BTP, insert the license and continue with
