What is the SAP Business Technology Platform (BTP)?

SAP BTP Platform is a platform as a service developed by SAP SE for creating new applications or extending existing applications in a secure cloud computing environment managed by SAP. The SAP BTP Platform integrates data and business processes (Source)

Prerequisites

Install NPM on your client e.g. on MacOS

brew install npm

npm install --global del-cli

npm install --global --safe js-yaml

Install Cloudfoundry CLI Tools for your Operating Systems (Read more)

brew install cloudfoundry/tap/cf-cli@7

Add additional Cloudfoundry Plugins to deploy Multi-Target Apps

cf add-plugin-repo CF-Community https://plugins.cloudfoundry.org

cf install-plugin multiapps -f

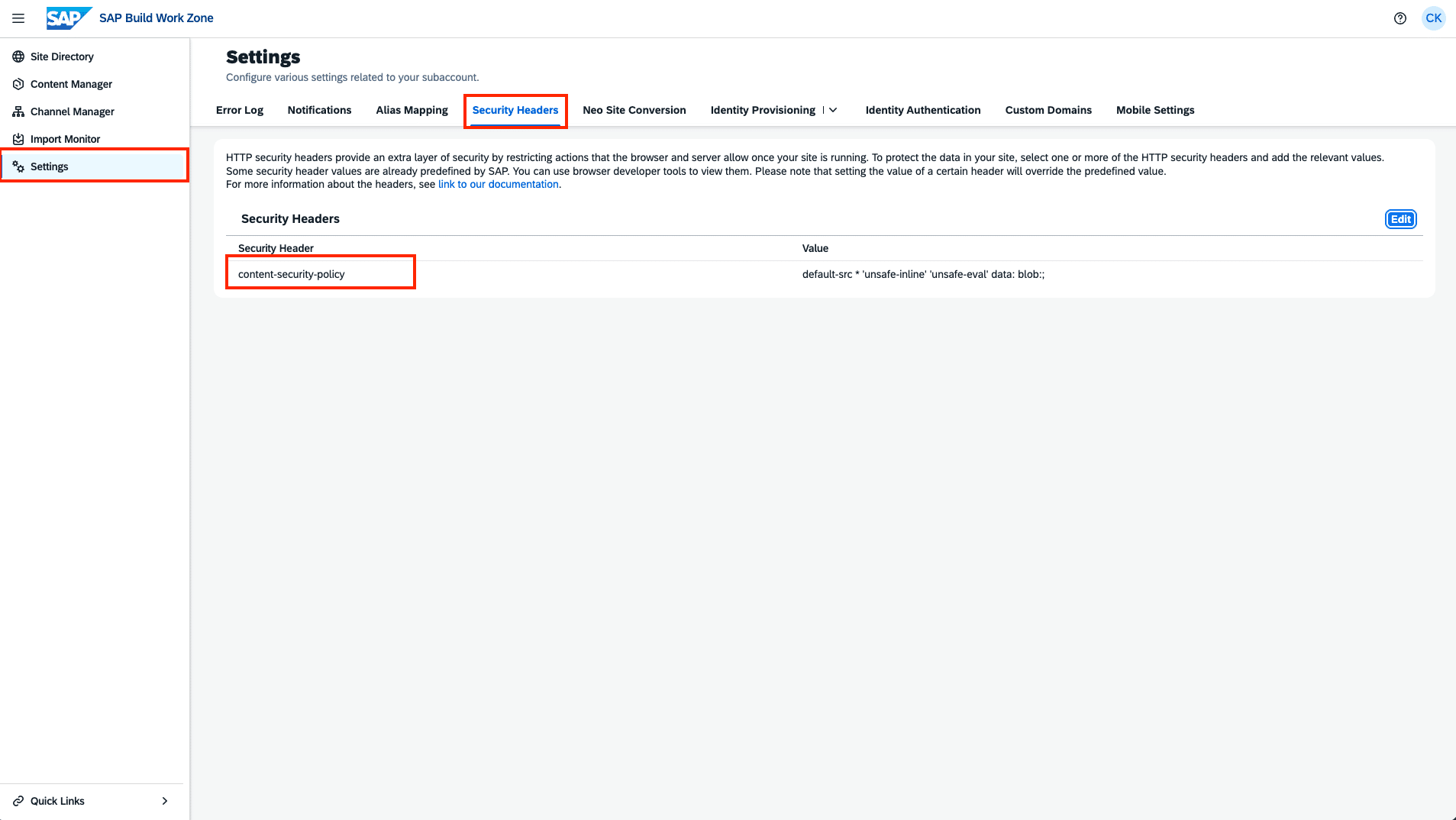

Make sure to add, within the settings of the site manager, the security header

content-security-policy

with the value

default-src * 'unsafe-inline' 'unsafe-eval' data: blob:;

Simplifier BTP Convert doesn’t support Applications with Anonymous Login

Step 1 – Open existing Application and Export App

Open an existing or create a new application
Open Application Properties (Click on the Application Name in the Left upper corner)
Click on the Icon Download Application

Step 2 – Fill out the Metadata (Manifest)

To upload the Simplifier Application on the SAP BTP Cloudfoundry HTML5 Repository , you have to provide the following metadata like in the screenshot above

Key	Example Value	Further Information
Server URL	https://demo.simplifier.io	Current URL of a public Simplifier Instance for providing Backendservices using our REST APIs like User Management, Business Objects, Connectors
Destination	Simplifier	Name of the BTP HTTP Destination (Read more). There is no need to create the Destination before.
Version	1.2.3	App Version Number
Disk Quota	2g	disk_quota defines the disk space for your app instance (Read more)
Number of Instance	1	Number of instances for running your app (Default 1) (Read more)
Memory	1g	Memory Limit of your App Instance (Read more). The default memory limit is 1g
Route	cfapps.eu10.hana.ondemand.com	Route which matches the path of an incoming request (Read more)
Tenant Host Pattern	(.).api.cf.eu10.hana.ondemand.com(.)	The Tennant Host Pattern is a string containing a regular expression with a capturing group. The request host is matched against this regular expression. The value of the first capturing group is used as the tenant subdomain. (Read more)
Route Source	simpDest	Regular expression that matches an incoming request path. To ensure the RegEx matches the complete path, wrap it with ^ and $, for example, “^/sap/ui5/1(.*)$”. A request matches a particular route if its path contains the specified regular expression. (Read more)

Step 3 – Click on the Download Button

Step 4 – Checkout our SAP BTP Converter

Checkout our Open-Source Simplfier-SAP-BTP Converter from GitHub into a local work directory like simplifier-workspace

cd /home/myUser/simplifier-workspace

git clone https://github.com/simplifier-ag/simplifier-sap-btp-converter.git

Step 5 – Extract Archive into same workspace

Extract the downloaded ZIP File into your simplifier workspace from the cloned GitHub project – you will get

Manifest.yml (Metadata File)
<NameofyourApp>.zip

Extract the <NameofyourApp>.zip again and copy the www directory as well as package.json and xs-app.json like this structure

Step 6 – Start Converter

Start the Converter into your local simplifier workspace directory

npm run convert "Extracted Folder App-Name"

When conversion is finished two new subfolder shared-build and app-build is created.

The shared-build is content shared between multiple simplifier apps, it needs to be deployed only once and not for every app.

Step 7 – Check Conversion

Check the following files and adjust values to your needs

app-build/<Appname>/manifest.json
app-build/<Appname>/xs-app.json
shared-build/xs-security.json
shared-build/destination.json
app-build/mta.yaml
shared-build/mta.yaml

If you have to change something, please run the build process again

The Application name in the file manifest.json has to be limited to a maximum 30 characters – otherwise the application is not visible within the sap build workzone configuration below.

Step 8 – Deploy the shared resources

You can skip this step if you already deployed the shared resources for another simplifier app

Make sure you are logged in to BTP

cf login

Make sure you enter your api endpoint for your cloudfoundry environment like https://api.cf.us10-001.hana.ondemand.com
Your Email address and your BTP Password

Within the shared-build directory

Install

npm install

Deploy

npm run deploy

Step 9 – Deploy the app

Make sure you are logged in to BTP

cf login

Make sure you enter your api endpoint for your cloudfoundry environment like https://api.cf.us10-001.hana.ondemand.com
Your Email address and your BTP Password

Within the app-build directory

Install

npm install

Deploy

npm run deploy

Step 10 – Logon on SAP BTP Platform

1. Navigate into the Subaccount where you want to deploy the business application

2. Navigate to Subscriptions into subaccount and select Work Zone Service

Step 11 – Configuring SAP Build Work Zone Service

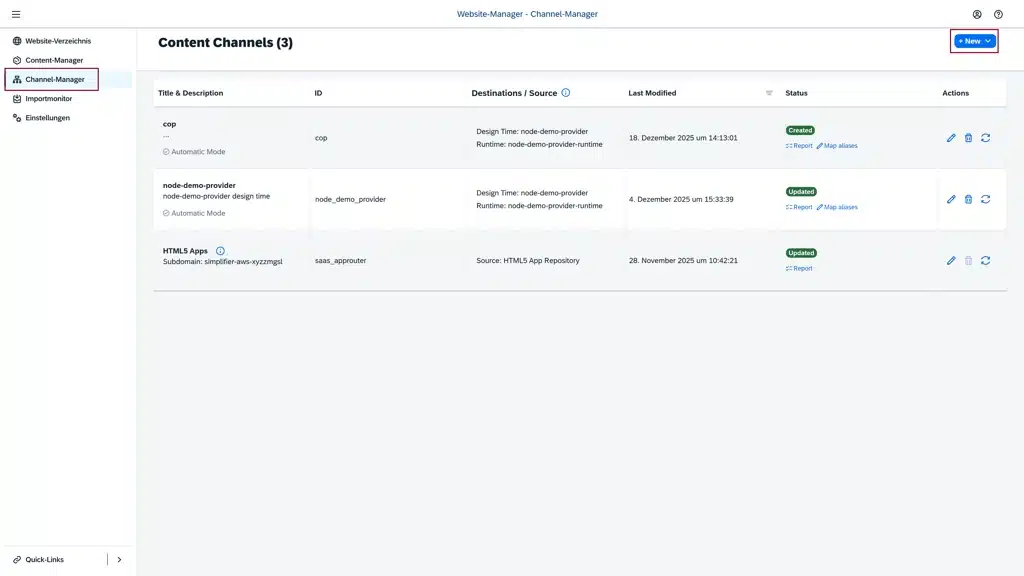

Go to Channel Manager and refresh the HTML5 Apps Content Channel
When changing the App or the integration in the SAP Build Work Zone refresh the Content Channel
